GP

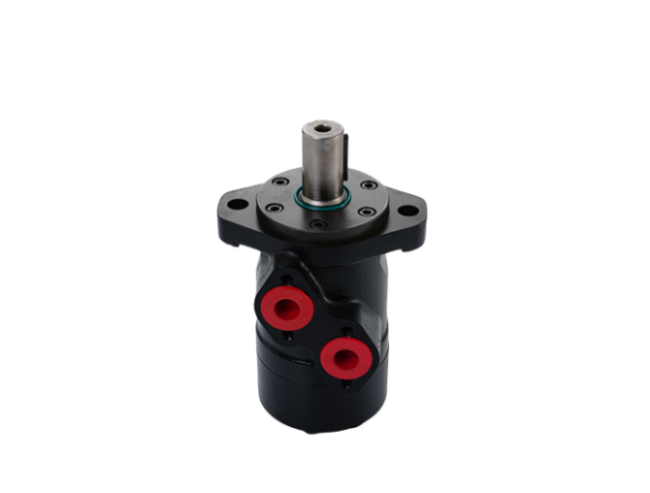

GRH has GP, GR, GH, GS, GT, GV, GGM series of orbital motors. The GH series of orbital hydraulic motors is a miniature axial motor that can be installed and used in a small space.

    Online consultation

    Product Description

    RYAN has GP, GR, GH, GS, GT, GV, GGM series of orbital motors. The GH series of orbital hydraulic motors is a miniature axial motor that can be installed and used in a small space.

    Options

    • Flange connection
    • Motor with needle roller bearing
    • Side and rear ports
    • Shaft seal for high and low pressure
    • Straight, splined and tapered shafts
    • Metric and BSPP ports
    • Other special features

    Applications

    • Conveyors
    • Feeding machanism of robots and manipulators
    • Metal working machines
    • Textile machines
    • Agricultural machines
    • Food industries
    • Lawn mower

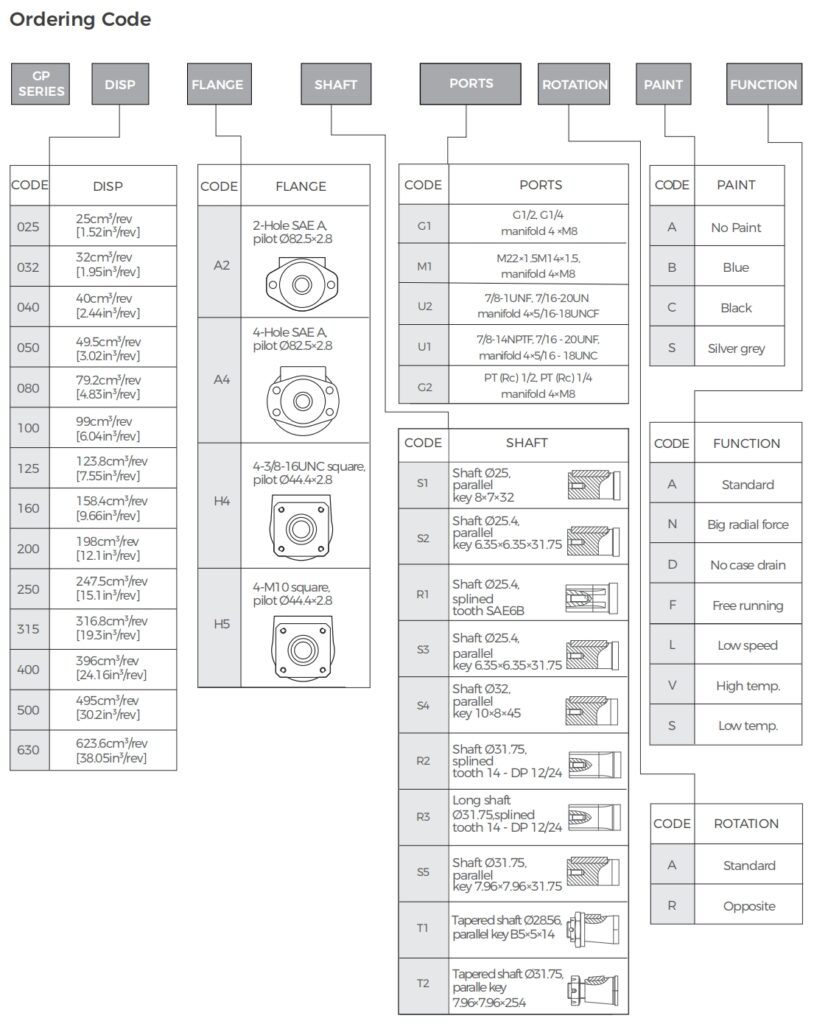

    Ordering Code

    Technical Parameters

    Max. Displacement cm3/rev[in3/rev]623.6 [38.05]
    Max. Speed [RPM]1815
    Max. Torque daNm[lb-in]cont.: 50 [5144] int.: 64 [5565]
    Max. Output kW[HP]12.8 [17.1]
    Max. Pressure Drop bar[PSI]cont.: 140 [2030] int.: 175 [2540]
    Max. Oil Flow lpm[GPM]75 [19.8]
    Min. Speed [RPM]10
    Pressure FluidMineral based - HLP (DIN 51524) or HM (ISO 6743/4)
    Temperature Range ℃[℉]-40÷140[-40÷284]
    Optimal Viscosity Range mm2/s[SUS]20 ÷ 75[98 ÷ 347]
    FiltrationISO code: 20/16 (Min: recommended fluid filtration of 25 micros)
    TypeGPGPGPGPGPGPGPGPGPGPGPGPGPGP
    2532405080100125160200250315400500630
    Displacement,cm³/rev [ in³/rev ]25 [1.52]32 [1.95]40[2.44]49.5[3.02]79.2[4.83]99[6.04]123,8[7.55]158,4[ 9.66]198 [12.1]247,5 [15.1]316,8 [19.3]396 [24.16]495 [30.2]623,6 [38.05]
    Max. Speed
    [RPM]    		Cont.160015601500121075560548637830324219015012095
    Int.*1815172017501515945755605472378303236189150120
    Max. Torque
    daNm [lb-in]    		Cont.3,3 [290]4,3 [380]6,2[550]9,4[835]15,1[1340]19,3[1710]23,7[2100]31,3 [2770]36,6 [3240]38 [3360]38 [3360]36 [3190]39 [3452]44 [3895]
    Int.*4,7 [415]6,1 [540]8,2[730]11,9[1050]19,5[1725]23,7[2100]29,8[2640]37,8 [3345]45,6 [4035]58,3 [5160]56 [4960]59 [5240]57 [5045]64 [5665]
    Peak**6,7 [595]8,6 [760]10,7[950]14,3[1285]22,4[1985]27,5[2435]36,5[3235]43,8 [3880]55 [4870]68,5 [6060]85 [7505]85,4 [7560]78 [6903]82 [7257]
    Max. Output
    kW [HP]    		Cont.4,5 [6.0]5,8 [7.8]8,4[11.5]10,1[13.5]10,2[13.7]10,5[14.1]10,2[13.7]10,1 [13.5]10 [13.5]7,5 [10]5,8 [7.9]4,6 [6.2]3,5 [4.7]3,3 [4.4]
    Int.*6,1 [8.2]7,8 [10.5]11,6[15.5]12,2[16.1]12,5[16.8]12,8[17.1]12[16.1]12,1 [16.2]12 [16.1]12 [16.1]9 [12.1]7,8 [10.5]7,2 [9.7]5,6 [7.5]
    Max. Pressure Drop
    bar [PSI]    		Cont.100 [1450]100 [1450]120[1750]140 [2030]140 [2030]140 [2030]140 [2030]140 [2030]140 [2030]110 [1600]90 [1300]70 [1015]60 [870]55 [800]
    Int.*140 [2030]140 [2030]155 [2250]175 [2540]175 [2540]175 [2540]175 [2540]175 [2540]175 [2540]175 [2540]140 [2030]115 [1665]90 [1305]80 [1160]
    Peak**225 [3260]225 [3260]225 [3260]225 [3260]225 [3260]225 [3260]225 [3260]225 [3260]225 [3260]225 [3260]225 [3260]180 [2610]130 [1885]110 [1740]
    Max. Oil Flow
    lpm [GPM]    		Cont.40 [10.5]50 [13.2]60[15.9]60[15.9]60[15.9]60[15.9]60[15.9]60[15.9]60[15.9]60[15.9]60[15.9]60[15.9]60[15.9]60[15.9]
    Int.*45 [11.9]55 [14.5]70 [18.5]75 [19.8]75 [19.8]75 [19.8]75 [19.8]75 [19.8]75 [19.8]75 [19.8]75 [19.8]75 [19.8]75 [19.8]75 [19.8]
    Max. Inlet Pressure
    bar [PSI]    		Cont.175 [2540]175 [2540]175 [2540]175 [2540]175 [2540]175 [2540]175 [2540]175 [2540]175 [2540]175 [2540]175 [2540]175 [2540]140 [2030]140 [2030]
    Int.*200 [2900]200 [2900]200 [2900]200 [2900]200 [2900]200 [2900]200 [2900]200 [2900]200 [2900]200 [2900]200 [2900]200 [2900]175 [2540]175 [2540]
    Peak**225 [3260]225 [3260]225 [3260]225 [3260]225 [3260]225 [3260]225 [3260]225 [3260]225 [3260]225 [3260]225 [3260]225 [3260]225 [3260]225 [3260]
    Max. Return Pressure
    without Drain Line
    bar [PSI]    		Cont.175 [2540]175 [2540]175 [2540]175 [2540]175 [2540]175 [2540]175 [2540]175 [2540]175 [2540]175 [2540]175 [2540]175 [2540]140 [2030]140 [2030]
    Int.*200 [2900]200 [2900]200 [2900]200 [2900]200 [2900]200 [2900]200 [2900]200 [2900]200 [2900]200 [2900]200 [2900]200 [2900]175 [2540]175 [2540]
    Peak**225 [3260]225 [3260]225 [3260]225 [3260]225 [3260]225 [3260]225 [3260]225 [3260]225 [3260]225 [3260]225 [3260]225 [3260]225 [3260]225 [3260]
    Max. Starting Pressure with
     Unloaded Shaft, bar [PSI]    		10 [145]10 [145]10 [145]10 [145]10 [145]10 [145]9[131]8 [116]7 [100]6 [87]5 [73]5 [73]5 [73]5 [73]
    Min. Starting Torque daNm [lb-in]At max. press. drop Cont.3,0 [265]4,0 [355]5,4 [480]7,8 [690]13,2 [1170]16,6 [1470]20,7 [1830]28,2 [2500]33,5 [2950]33,6 [2970]34,4 [3045]34,5 [3050]36 [3180]41,5 [3670]
    At max. press. drop Int.*4,2 [370]5,6 [500]6,8 [600]10 [885]16,8 [1490]21 [1860]26,6 [2360]35,5 [3140]42,6 [3770]54,2 [4795]61,9 [5480]60,8 [5390]54 [4780]62 [5480]
    Min. Speed***, [RPM]GP2015101010101010101010101010
    Weight,kg[lb]
    Rear Port +0.450 [992]    		5,6 [12.3]5,6 [12.3]5,7 [12.6]5,8 [12.8]5,9 [13.2]6,1 [13.5]6,2 [13.7]6,4 [14.1]6,6 [14.6]6,8 [15]7,1 [15.6]7,6 [16.8]8,9 [20]9,5 [21.4]

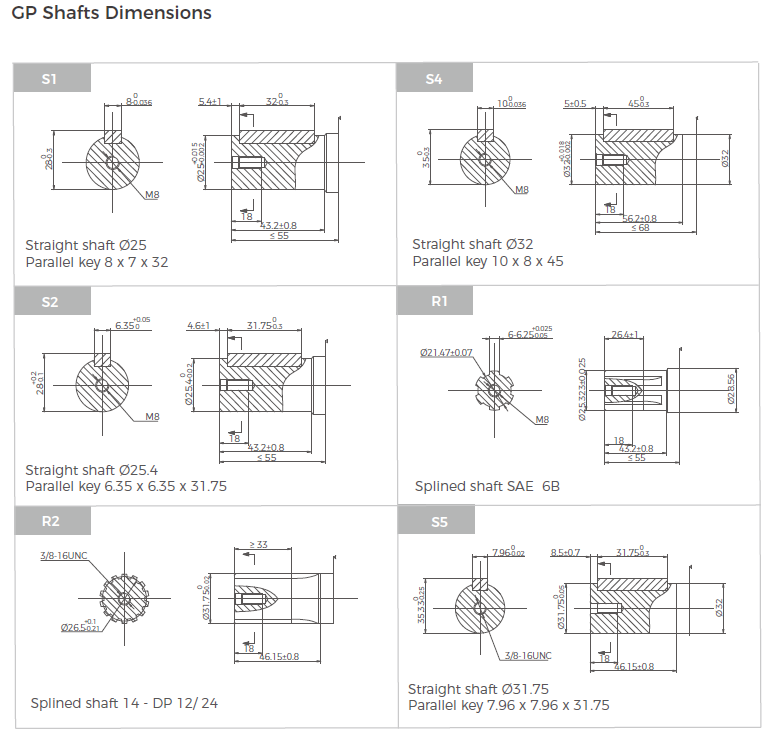

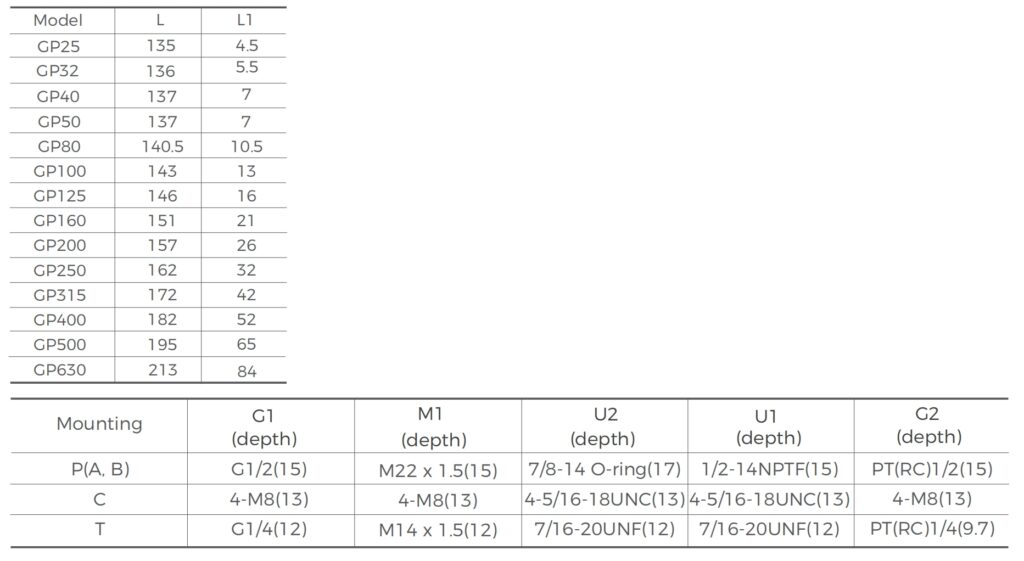

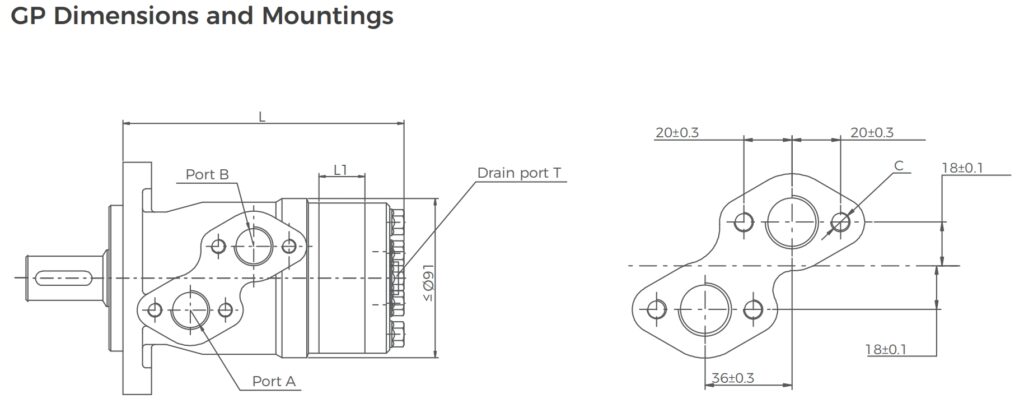

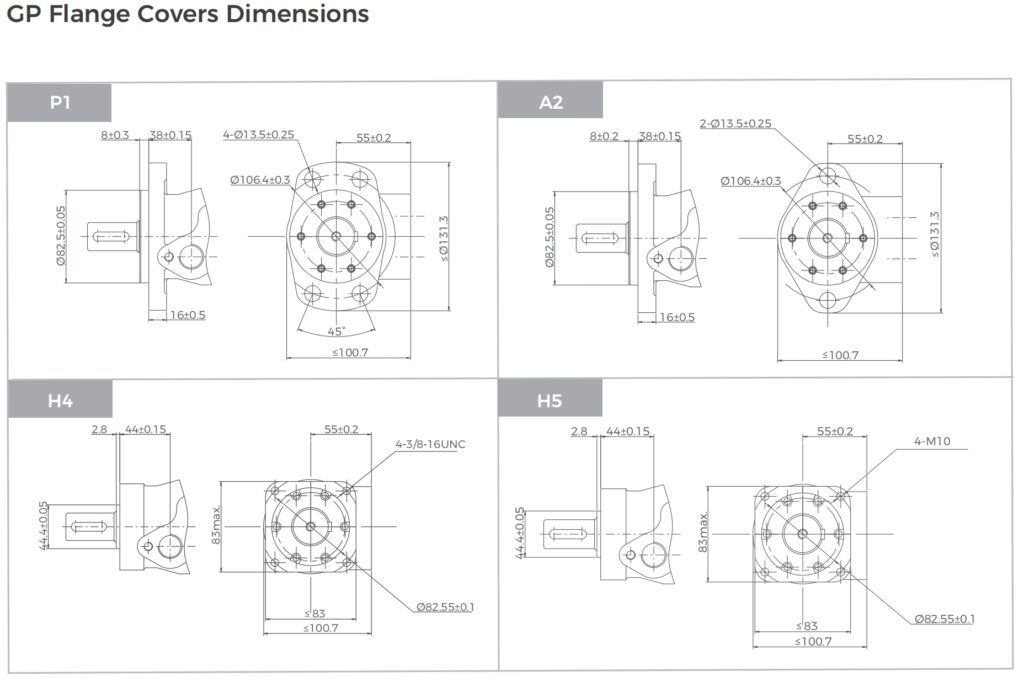

    Dimensions

    Crossover Table for Orbital Motors

    No.Ryan SeriesDFETCLWDPKMSBV
    1GMOMMJ129MM/MLHMBGM
    2GPOMPMP/MLHPBG
    3GPHH101HPBH
    4GP-HOMPX
    5GROMRRSMRBR
    6GRSS103DH/DSHRBS
    7GR-HOMRX
    8GHOMHMH
    9GSOMSMLHSHR
    10GSSOMSSMLHSS
    11GTOMTMLHTHT
    12GTSOMTSMLHTS
    13GVOMV10000 SERIESMLHV
    14GVSOMVSMLHVS
    15GFATE
    16GFBTB
    17GFDTG
    18GFETGK
    19GFFTF
    20GFKTK
    21GKA2000 SERIES104/105/106
    22GKB4000 SERIES109/110/111
    23GKC6000 SERIES112/113/114
    24GGMMGG
    25GWDDELTA SERIESRE 500/501 CEHW
    26GWHHB
    27GBDBK913/915
    28GKA-BK10DR
    30GFD-BKBG

    Application Areas

    RYAN GH series cycloidal motors are widely used in conveyors, textile machinery, mining machinery, industrial processing, cooling equipment,
    engineering machinery, and agricultural machinery.
