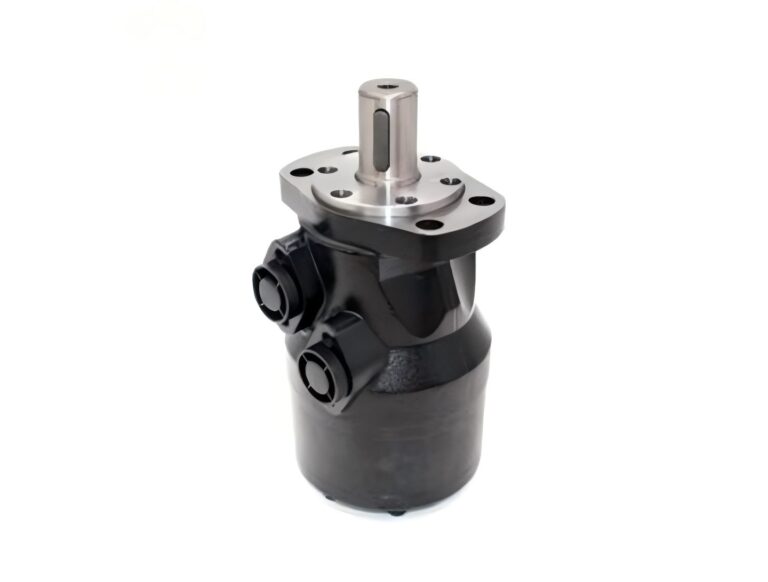

GRH has GP, GR, GH, GS, GT, GV, GGM series of orbital motors. The GH series of orbital hydraulic motors is a miniature axial motor that can be installed and used in a small space.
RYAN has GP, GR, GH, GS, GT, GV, GGM series of orbital motors. The GH series of orbital hydraulic motors is a miniature axial motor that can be installed and used in a small space.
| Max. Displacement cm3/rev[in3/rev] | 502.4 [30.7] |
| Max. Speed [RPM] | 445 |
| Max. Torque daNm[lb-in] | cont.: 84 [7434] int.: 104 [9204] |
| Max. Output kW[HP] | 18.5 [24.8] |
| Max. Pressure Drop bar[PSI] | cont.: 175 [2540] int.: 200 [2900] |
| Max. Oil Flow lpm[GPM] | 90 [23.78] |
| Min. Speed [RPM] | 5 |
| Pressure Fluid | Mineral based - HLP (DIN 51524) or HM (ISO 6743/4) |
| Temperature Range ℃[℉] | -40÷140[-40÷284] |
| Optimal Viscosity Range mm2/s[SUS] | 20 to 75[98 ÷ 347] |
| Filtration | ISO code: 20/16 (Min: recommended fluid filtration of 25 microns) |
| TYPE | GH200 | GH250 | GH315 | GH400 | GH500 | |
| Displacement cm3/rev[in3/rev] | 201.3[12.3] | 252.3[15.4] | 314.9[19.2] | 396.8[24.2] | 502.4[30.7] | |
| Max. Speed [RPM] | Cont. | 370 | 295 | 235 | 185 | 150 |
| Int.* | 445 | 350 | 285 | 225 | 180 | |
| Max. Torque daNm[Ib-in] | Cont. | 51[4510] | 61[5398] | 74[6548] | 84[7434] | 82[7257] |
| Int.* | 58[5130] | 70[6195] | 82[7257] | 98[8673] | 104[9204] | |
| Peak** | 64[5064] | 79[6992] | 98[8673] | 109[9647] | 117[10350] | |
| Max.Outpot kW[HP] | Cont. | 16[21] | 16[2] | 14[18.7] | 12.5[16.7] | 1[14.7] |
| Int.* | 18,5[24.8] | 18,5[24.8] | 15.5[20.7] | 15[20.1] | 14[18.7] | |
| Max.Pressure Drop bar[PSI] | Cont. | 175[2540] | 175[2540] | 175[2540] | 155[2240] | 125[1810] |
| Int.* | 200[2900] | 200[2900] | 200[2900] | 190[2750] | 160[2320] | |
| Peak** | 225[3260] | 225[3260] | 225[3260] | 210[3045] | 180[2610] | |
| Max.Oil Flow Ipm[GPM] | Cont. | 75[19.81] | 75[19.81 | 75[1981] | 75[19.81] | 75[19.81] |
| Int.* | 90[23.78] | 90[23.78] | 90[23.78] | 90[23.78] | 90[23.78] | |
| Max.Inlet Pressure bar[PSI] | Cont. | 200[2900] | 200[2900] | 200[2900] | 200[2900] | 200[2900] |
| Int.* | 225[3260] | 225[3260] | 225[3260] | 225[3260] | 225[3260] | |
| Peak** | 250[3626] | 250[3626] | 250[3626] | 250[3626] | 250[3626] | |
| Max.Starting Pressure with Unloaded Shaft.[bar PSI] | 5[72] | 5[72] | 5[72] | 5[72] | 5[72] | |
| Min.Starting Torque daNm[Ib-in] | At max.press.drop Cont. | 39[3450] | 52[4600] | 66[5840] | 72[6370] | 72[6370] |
| At max.press.drop Int.* | 45[3980] | 59[5221] | 73[6460] | 88[7788] | 88[7788] | |
| Min.speed.[RPM] | 10 | 10 | 8 | 5 | 5 | |
| Weight,kg[lb] | GH | 10,5[23.2] | T[24.3] | 7,5[25.4] | 12,3[271] | 13[28.7] |
| No. | Ryan Series | DF | ET | CL | WD | PK | MS | BV |
| 1 | GM | OMM | J | 129 | MM/MLHM | BGM | ||
| 2 | GP | OMP | MP/MLHP | BG | ||||
| 3 | GPH | H | 101 | HP | BH | |||
| 4 | GP-H | OMPX | ||||||
| 5 | GR | OMR | RS | MR | BR | |||
| 6 | GRS | S | 103 | DH/DS | HR | BS | ||
| 7 | GR-H | OMRX | ||||||
| 8 | GH | OMH | MH | |||||
| 9 | GS | OMS | MLHS | HR | ||||
| 10 | GSS | OMSS | MLHSS | |||||
| 11 | GT | OMT | MLHT | HT | ||||
| 12 | GTS | OMTS | MLHTS | |||||
| 13 | GV | OMV | 10000 SERIES | MLHV | ||||
| 14 | GVS | OMVS | MLHVS | |||||
| 15 | GFA | TE | ||||||
| 16 | GFB | TB | ||||||
| 17 | GFD | TG | ||||||
| 18 | GFE | TGK | ||||||
| 19 | GFF | TF | ||||||
| 20 | GFK | TK | ||||||
| 21 | GKA | 2000 SERIES | 104/105/106 | |||||
| 22 | GKB | 4000 SERIES | 109/110/111 | |||||
| 23 | GKC | 6000 SERIES | 112/113/114 | |||||
| 24 | GGM | MGG | ||||||
| 25 | GWD | DELTA SERIES | RE 500/501 CE | HW | ||||
| 26 | GWH | HB | ||||||
| 27 | GBD | BK913/915 | ||||||
| 28 | GKA-BK10 | DR | ||||||
| 30 | GFD-BK | BG |
RYAN GH series cycloidal motors are widely used in conveyors, textile machinery, mining machinery, industrial processing, cooling equipment,
engineering machinery, and agricultural machinery.
