GS

GRH has GP, GR, GH, GS, GT, GV, GGM series of orbital motors. The GH series of orbital hydraulic motors is a miniature axial motor that can be installed and used in a small space.

    Online consultation

    Product Description

    RYAN has GP, GR, GH, GS, GT, GV, GGM series of orbital motors. The GH series of orbital hydraulic motors is a miniature axial motor that can be installed and used in a small space.

    Options

    • Flange and wheel mount
    • Bearingless motor
    • Motor with brake
    • Tachometer connection
    • Speed sensing
    • Side and rear ports
    • Straight, splined and tapered shafts
    • Shaft seal for high and low pressure
    • Metric and BSPP ports
    • Other special features

    Applications

    • Conveyors
    • Road building machines
    • Metal working machines
    • Special vehicles
    • Agricultural machines
    • Food industries
    • Mining machines

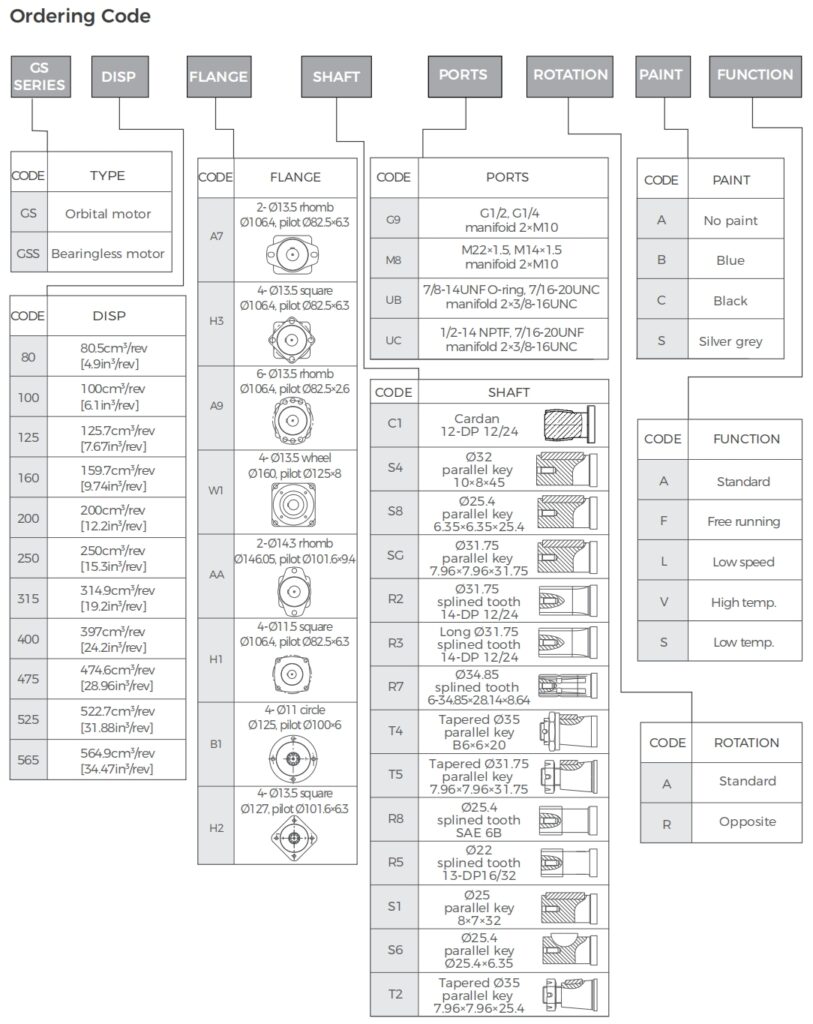

    Ordering Code

    Technical Parameters

    Max. Displacement cm3/rev[in3/rev]564.9 [34.47]
    Max. speed RPM1000
    Max. Torque daNm[lb-in]cont.: 85 [7520] int.: 99 [8760]
    Max. Output kW[HP]23 [30.8]
    Max. Pressure Drop bar[PSI]cont.: 210 [3050] int. 275 [3990]
    Max. Oil Flow lpm[GPM] 90[24]
    Min. Speed RPM5
    Pemissible Shaft Loads daNm[lbs]Pa=500[1125]
    Pressure fluidMineral based - HLP (DIN 51524) or HM (ISO 6743/4)
    Temperature range ℃[℉]-40 ÷ 140[-40 ÷ 284]
    Optimal Viscosity Range mm2/s[SUS]20 ÷ 75[98 ÷ 347]
    FiltrationISO code 20/16 (Min. recommended fluid filtration of 25 microns)
    TypeGSGSGSGSGSGSGSGSGSGSGS
    80100125160200250315400475525565
    Displacement,cm³/rev [ in³/rev ]80,5[4.91]100[6.1]125,7[7.67]159,7[9.74]200[12.2]250 [15.3]314,9 [19.2]397 [24.2]474,6[28.96]522,7 [31.88]564,9[34.47]
    Max. Speed,Cont.810750600470375300240190160145130
    [RPM]Int.*1000900720560450360290230190175160
    Max. TorqueCont.24[2120]30,5[2700]37,5[3320]49[4340]61[5400]72 [6370]82,5 [7300]86,5 [7660]85 [7520]85 [7520]85 [7520]
    daNm [lb-in]Int.*31[2740]39[3450]49[4340]60[5310]72[6370]87 [7700]100 [8850]99[8760]99[8760]99[8760]99[8760]
    Max. OutputCont.15,5[20.8]18[24.1]18[24.1]16,5[22.1]16,5[22.1]14,5[19.4]15[20.1]11[14.8]8,4 [11]7,6 [10.2]6,9 [9]
    kW[ HP]Int.*19,5[26.2]22,8[30.2]22,5[30.2]23[30.8]22[29.52]18 [24.1]17[22.8]12,5[16.8]11.3[15]10,4[13.9]9,6[13]
    Max. Pressure DropCont.210[3050]210[3050]210[3050]210[3050]210[3050]200 [2900]200 [2900]160[2320]130[1880]115[1670]105[1520]
    bar [PSI]Int.*275[3990]275[3990]275[3990]275[3990]275[3990]250 [3630]240[3480]190[2760]150[2180]135[1960]125[1810]
    Peak**295[4280]295[4280]295[4280]295[4280]295[4280]270[3920]260[3770]210[3050]170[2470]155[2250]145[2100]
    Max. Oil FlowCont.65[17]75[20]75[20]75[20]75[20]75[20]75[20]75[20]75[20]75[20]75[20]
    lpm [GPM]Int.*80[21]90[24]90[24]90[24]90[24]90[24]90[24]90[24]90[24]90[24]90[24]
    Max. Inlet PressureCont.230[3340]230[3340]230[3340]230[3340]230[3340]230[3340]230[3340]230[3340]230[3340]230[3340]230[3340]
    bar [PSI]Int.*295[4280]295[4280]295[4280]295[4280]295[4280]295[4280]295[4280]295[4280]295[4280]295[4280]295[4280]
    Peak**300[4350]300[4350]300[4350]300[4350]300[4350]300[4350]300[4350]300[4350]300[4350]300[4350]300[4350]
    Max. Starting Pressure withCont.140[2030]140[2030]140[2030]140[2030]140[2030]140[2030]140[2030]140[2030]140[2030]140[2030]140[2030]
    Drain LineInt.*175[2540]175[2540]175[2540]175[2540]175[2540]175[2540]175[2540]175[2540]175[2540]175[2540]175[2540]
    bar [PSI]Peak**210[3050]210[3050]210[3050]210[3050]210[3050]210[3050]210[3050]210[3050]210[3050]210[3050]210[3050]
    Max. Starting Pressure with Unloaded Shaft, bar [PSI]12[175]10[145]10[145]8[115]8[115]8[115]8[115]8[115]8[115]8[115]8[115]
    Min. Starting Torque daNm [lb-in]At max. press. drop Cont.18[1590]23[2040]29[2570]37[3270]47[4160]56[4960]71[6280]71[6280]71[6280]71[6280]71[6280]
    At max. press. drop Int.*23,5[2080]30[2660]38[3360]46[4070]56[4960]70[6200]85[7520]84[7430]84[7430]84[7430]84[7430]
    Min. Speed***, [RPM]1010886655555
    Weight,kg[lb]GS9,9[21.8]10,1[22.2]10,4[22.9]10,8[23.8]11,2[24.7]11,7[25.8]12,4[27.3]13,1[29.3]14,1 [31]14,6 [32.2]15 [33.1]
    For Reare Ports+0,40[.88]GSS7,9 [17.4]8,1[17.8]8,4[18.5]8,8[19.4]9,2[20.2]9,7[21.4]10,4[22.9]11,3[24.9]12.1 [26.7]12,6 [27.8]13 [28.6]

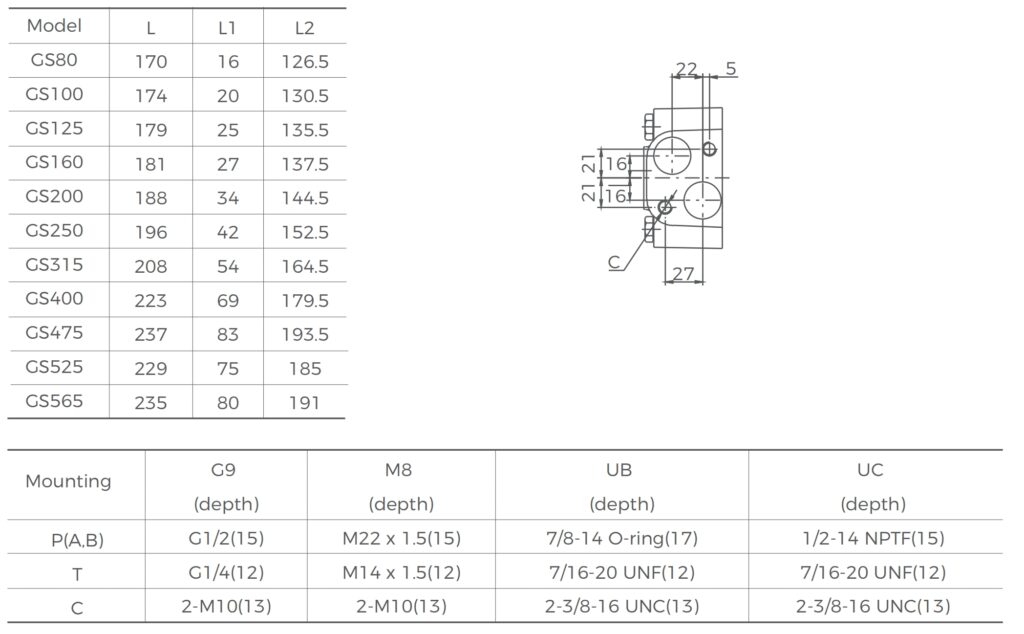

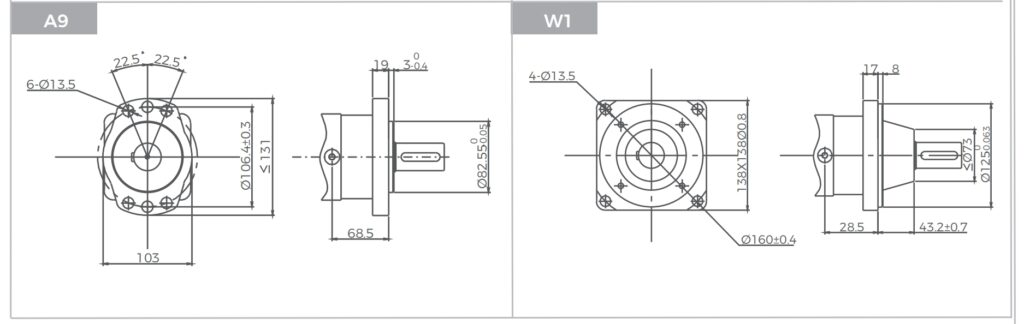

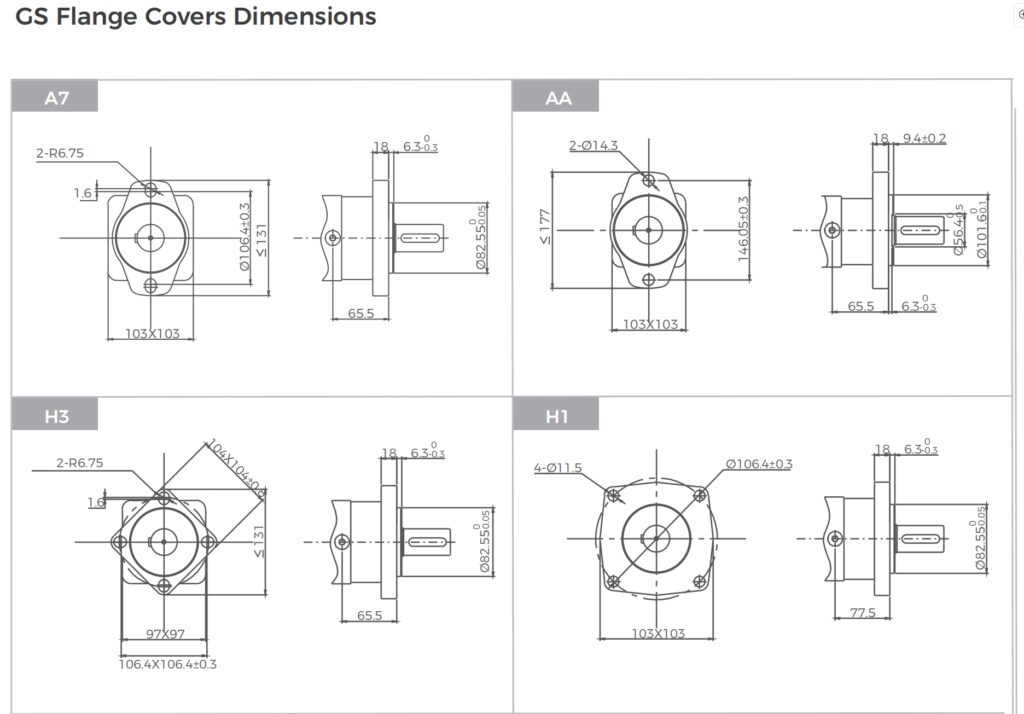

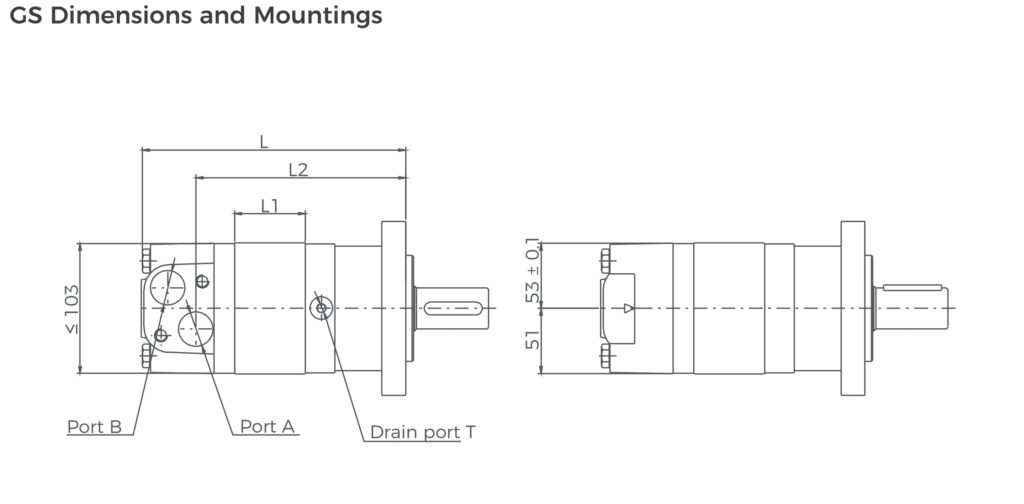

    Dimensions

    Crossover Table for Orbital Motors

    No.Ryan SeriesDFETCLWDPKMSBV
    1GMOMMJ129MM/MLHMBGM
    2GPOMPMP/MLHPBG
    3GPHH101HPBH
    4GP-HOMPX
    5GROMRRSMRBR
    6GRSS103DH/DSHRBS
    7GR-HOMRX
    8GHOMHMH
    9GSOMSMLHSHR
    10GSSOMSSMLHSS
    11GTOMTMLHTHT
    12GTSOMTSMLHTS
    13GVOMV10000 SERIESMLHV
    14GVSOMVSMLHVS
    15GFATE
    16GFBTB
    17GFDTG
    18GFETGK
    19GFFTF
    20GFKTK
    21GKA2000 SERIES104/105/106
    22GKB4000 SERIES109/110/111
    23GKC6000 SERIES112/113/114
    24GGMMGG
    25GWDDELTA SERIESRE 500/501 CEHW
    26GWHHB
    27GBDBK913/915
    28GKA-BK10DR
    30GFD-BKBG

    Application Areas

    RYAN GH series cycloidal motors are widely used in conveyors, textile machinery, mining machinery, industrial processing, cooling equipment,
    engineering machinery, and agricultural machinery.
