GGM series orbital motor is a hydraulic motor with a disk distribution orbital motor.It has the characteristics of high working pressure, high working efficiency, and long working life.
RYAN has GP, GR, GH, GS, GT, GV, GGM series of orbital motors. The GH series of orbital hydraulic motors is a miniature axial motor that can be installed and used in a small space.
| Max. Displacement cm3/rev[in3/rev] | 11.47 [0.7] |
| Max. Speed [RPM] | 5000 |
| Max. Torque 1000PSI in.-Ibs[kg-cm] | 111[128] |
| Max. Output kW[HP] | 64[85.8] |
| Max. Pressure Drop bar[PSI] | cont.: 138 [2000] int.: 172.58 [2500] |
| Max. Oil Flow lpm[GPM] | 56.7 [15] |
| Pressure fluid | Mineral based - HLP (DIN 51524) or HM (ISO 6743/4) |
| Temperature Range ℃[℉] | -40÷140[-40÷284] |
| Optimal Viscosity Range mm2/s[SUS] | 20 ÷ 75[98 ÷ 347] |
| Filtration | ISO code: 20/16 (Min: recommended fluid filtration of 25 microns) |
| Type | GGM3.6 | GGM6.1 | GGM7.4 | GGM9.5 | GGM11.5 |
| Displacement in³/rev [cm³/rev] | 0.218(3.57) | 0.372(6.094) | 0.450(7.374) | 0.580(9.50) | 0.700(11.471) |
| Max.Rated RPM | 5000 | 5000 | 5000 | 5000 | 5000 |
| Rated Flow Per 1000 RPM (Nominal) | 0.95GPM(3.6 L/min) | 1.61GPM(6.1 L/min) | 1.95GPM(7.4 L/min) | 2.51GPM(9.5 L/min) | 3.03GPM(11.5 L/min) |
Max.Continuous Pressure Max.Intermittent Pressure | 2000PSI(138.0bar) | 2000PSI(138.0bar) | 2000PSI (138.0bar) | 2000PSI(138.0bar) | 1500PSI (103.5bar) |
| 2500PSI(172.5bar) | 2500PSI(172.5bar) | 2500PSI (172.5bar) | 2500PSI(172.5bar) | 2000PSI (138.0bar) | |
| Output Torque Per 1000 PSI (69.0 bar) | 35in.-lbs | 59in.-lbs | 72in.-lbs. | 92 in.-lbs. | 111 in.-lbs |
(40kg-cm) | (68 kg-cm) | (83 kg-cm) | (107 kg-cm) | (128 kg-cm) | |
| Weight | 2.8 pounds(1.25kg) | 3.0 pounds(1.36kg) | 3.1 pounds(1.41kg) | 3.3 pounds(1.50kg) | 0.5 pounds(1.59kg) |
| Shaft Side Load** | 170 lbs(77.0kg) | 130 Ibs. (59.0kg) | 110 Ibs. (50.0kg) | 70 Ibs. (31.7kg) | 30 lbs. (13.5kg) |
| No. | Ryan Series | DF | ET | CL | WD | PK | MS | BV |
| 1 | GM | OMM | J | 129 | MM/MLHM | BGM | ||
| 2 | GP | OMP | MP/MLHP | BG | ||||
| 3 | GPH | H | 101 | HP | BH | |||
| 4 | GP-H | OMPX | ||||||
| 5 | GR | OMR | RS | MR | BR | |||
| 6 | GRS | S | 103 | DH/DS | HR | BS | ||
| 7 | GR-H | OMRX | ||||||
| 8 | GH | OMH | MH | |||||
| 9 | GS | OMS | MLHS | HR | ||||
| 10 | GSS | OMSS | MLHSS | |||||
| 11 | GT | OMT | MLHT | HT | ||||
| 12 | GTS | OMTS | MLHTS | |||||
| 13 | GV | OMV | 10000 SERIES | MLHV | ||||
| 14 | GVS | OMVS | MLHVS | |||||
| 15 | GFA | TE | ||||||
| 16 | GFB | TB | ||||||
| 17 | GFD | TG | ||||||
| 18 | GFE | TGK | ||||||
| 19 | GFF | TF | ||||||
| 20 | GFK | TK | ||||||
| 21 | GKA | 2000 SERIES | 104/105/106 | |||||
| 22 | GKB | 4000 SERIES | 109/110/111 | |||||
| 23 | GKC | 6000 SERIES | 112/113/114 | |||||
| 24 | GGM | MGG | ||||||
| 25 | GWD | DELTA SERIES | RE 500/501 CE | HW | ||||
| 26 | GWH | HB | ||||||
| 27 | GBD | BK913/915 | ||||||
| 28 | GKA-BK10 | DR | ||||||
| 30 | GFD-BK | BG |

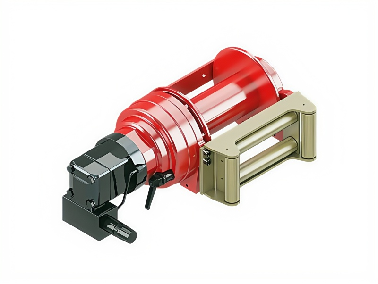

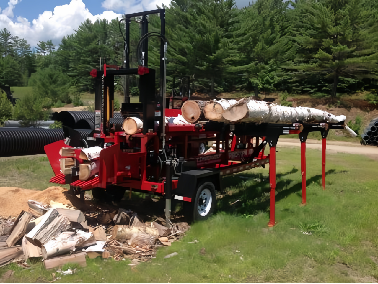

RYAN GGM series obrital motors are widely used in harvestor，splitter and aerial winch.
