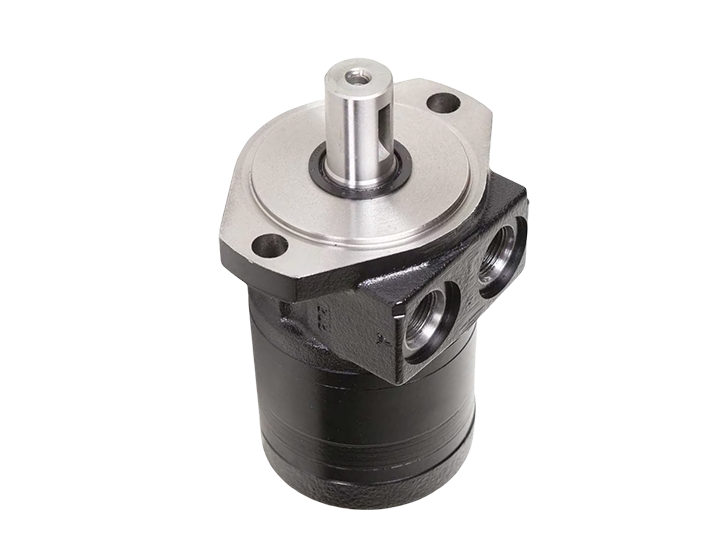

RYAN has GP, GR, GH, GS, GT, GV, GGM series of orbital motors. The GH series of orbital hydraulic motors is a miniature axial motor that can be installed and used in a small space.
| Max. Displacement cm3/rev[in3/rev] | 392 [24.0] |
| Max. Speed [RPM] | 1141 |
| Max. Torque daNm[lb-in] | cont.: 44.5 [3935] int.:62.8 [5562] |
| Max. Output kW[HP] | 12.5 [16.8] |
| Max. Pressure Drop bar[PSI] | cont.: 140 [2030] int.: 190 [2750] |
| Max. Oil Flow lpm[GPM] | 75 [20.0] |
| Pressure Fluid | Mineral based - HLP (DIN 51524) or HM (ISO 6743/4) |
| Temperature Range ℃[℉] | -40÷140[-40÷284] |
| Optimal Viscosity Range mm2/s[SUS] | 20 ÷ 75[98 ÷ 347] |
| Filtration | ISO code: 20/16 (Min: recommended fluid filtration of 25 microns) |
| Type | GFA | GFA | GFA | GFA | GFA | GFA | GFA | GFA | GFA | GFA | GFA | GFA | GFA | GFA | GFA | |
| 36 | 45 | 50 | 65 | 80 | 100 | 130 | 165 | 195 | 230 | 260 | 295 | 330 | 365 | 390 | ||
| Displacement,cm³ /rev [ in³/rev ] | 36[2.2] | 41[2.5] | 49[3.0] | 65[4.0] | 82[5.0] | 98[6.0] | 130[8.0] | 163[10.0] | 195[11.9] | 228[13.9] | 260[15.9] | 293[17.9] | 328[20.0] | 370[22.6] | 392[24.0] | |
| Max. Speed,RPM | Int. | 1141 | 1024 | 1020 | 877 | 695 | 582 | 438 | 348 | 292 | 328 | 287 | 256 | 228 | 203 | 191 |
| Max. Oil Flow IPM [GPM] | Cont. | 34[9] | 34[9] | 34[9] | 45[12] | 45[12] | 45[12] | 45[12] | 45[12] | 45[12] | 57[15] | 57[15] | 57[15] | 57[15] | 57[15] | 57[15] |
| Int. | 42[11] | 42[11] | 50[13] | 57[15] | 57[15] | 57[15] | 57[15] | 57[15] | 57[15] | 75[20] | 75[20] | 75[20] | 75[20] | 75[20] | 75[20] | |
| Max Differential Pressure bar [PSI] | Cont. | 140[2030] | 140[2030] | 140[2030] | 140[2030] | 140[2030] | 140[2030] | 140[2030] | 140[2030] | 140[2030] | 120[1740] | 110[1595] | 100[1450] | 100[1450] | 95[1378] | 85[1233] |
| Int. | 190[2750] | 190[2750] | 190[2750] | 190[2750] | 190[2750] | 190[2750] | 190[2750] | 190[2750] | 190[2750] | 165[2400] | 155[2250] | 145[2100] | 135[1950] | 125[1825] | 120[1740] | |
| Max Supply Pressure bar [PSI] | 200[2900] | 200[2900] | 200[2900] | 200[2900] | 200[2900] | 200[2900] | 200[2900] | 200[2900] | 200[2900] | 200[2900] | 200[2900] | 200[2900] | 200[2900] | 200[2900] | 200[2900] | |
| Max. Torque daNm [Ib-in] | Cont. | 54.6[483] | 71[624] | 90[796] | 125[1106] | 160[1416] | 190[1682] | 255[2257] | 310[2744] | 390[3452] | 380[3363] | 400[3540] | 428[3784] | 443[3926] | 467[4133] | 445[3935] |
| Int. | 71.1[60] | 99[876] | 127[1120] | 176[1558] | 220[1947] | 264[2337] | 352[3116] | 436[3846] | 528[4673] | 514[4554] | 550[4870] | 582[5180] | 600[5312] | 648[5728] | 628[5562] | |
| Max.Preformance KW[HP] | 8.5[11.4] | 10.4[13.9] | 12.8[17.2] | 14.7[19.8] | 17.3[23.2] | 17.4[23.4] | 17.3[23.2] | 17.0[22.8] | 17.4[23.4] | 17.7[23.8] | 16.7[22.4] | 15.7[21.0] | 14.8[19.8] | 13.6[18.2] | 12.5[16.8] | |
| Min.Staring Torque daNm[Ib-in] Weight.kg【Ib】 | Cont. | 44[389] | 44[111] | 72[637] | 100[885] | 128[1133] | 152[1345] | 204[1806] | 248[2195] | 312[2762] | 304[2691] | 320[2832] | 328[2903] | 334[3045] | 373[3301] | 348[3080] |
| Int. | 52[460] | 64[565] | 98[871] | 137[1211] | 171[1515] | 205[1819] | 274[2423] | 338[2992] | 411[3637] | 411[3637] | 449[3977] | 445[3939] | 453[4014] | 477[4223] | 462[4090] | |
| 5.93[13.07] | 6.03[13.3] | 6.12[13.5] | 6.26[13.8] | 6.35[14.0] | 6.49[14.3] | 6.76[14.9] | 7.03[15.5] | 7.35[16.2] | 7.58[16.7] | 7.80[17.2] | 8.07[17.8] | 8.35[18.4] | 8.66[19.1] | 8.80[19.4] | ||
| No. | Ryan Series | DF | ET | CL | WD | PK | MS | BV |
| 1 | GM | OMM | J | 129 | MM/MLHM | BGM | ||
| 2 | GP | OMP | MP/MLHP | BG | ||||
| 3 | GPH | H | 101 | HP | BH | |||
| 4 | GP-H | OMPX | ||||||
| 5 | GR | OMR | RS | MR | BR | |||
| 6 | GRS | S | 103 | DH/DS | HR | BS | ||
| 7 | GR-H | OMRX | ||||||
| 8 | GH | OMH | MH | |||||
| 9 | GS | OMS | MLHS | HR | ||||
| 10 | GSS | OMSS | MLHSS | |||||
| 11 | GT | OMT | MLHT | HT | ||||
| 12 | GTS | OMTS | MLHTS | |||||
| 13 | GV | OMV | 10000 SERIES | MLHV | ||||
| 14 | GVS | OMVS | MLHVS | |||||
| 15 | GFA | TE | ||||||
| 16 | GFB | TB | ||||||
| 17 | GFD | TG | ||||||
| 18 | GFE | TGK | ||||||
| 19 | GFF | TF | ||||||
| 20 | GFK | TK | ||||||
| 21 | GKA | 2000 SERIES | 104/105/106 | |||||
| 22 | GKB | 4000 SERIES | 109/110/111 | |||||
| 23 | GKC | 6000 SERIES | 112/113/114 | |||||
| 24 | GGM | MGG | ||||||
| 25 | GWD | DELTA SERIES | RE 500/501 CE | HW | ||||
| 26 | GWH | HB | ||||||
| 27 | GBD | BK913/915 | ||||||
| 28 | GKA-BK10 | DR | ||||||
| 30 | GFD-BK | BG |
RYAN GH series cycloidal motors are widely used in conveyors, textile machinery, mining machinery, industrial processing, cooling equipment,
engineering machinery, and agricultural machinery.
