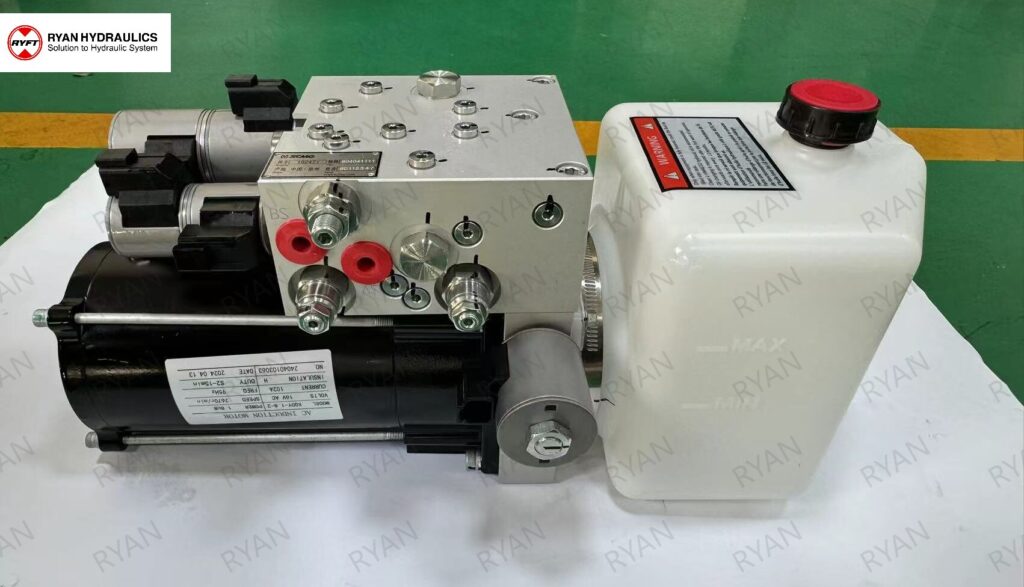

Ryan Hydraulics introduces its Permanent Magnet Synchronous Hydraulic Drive Integrated Power Unit. Its features include:
- Structural Integration: Combines a high-efficiency permanent magnet synchronous motor, a hydraulic pump with a wide speed range, hydraulic oil tank, relief valve, check valve, solenoid directional valve, return line filter, and air breather into a single unit.
- Functional Integration: Integrates hydraulic steering control circuits, hydraulic lifting control circuits, and hydraulic drive travel control circuits.
- Key Advantages: Compact and rational structure, high efficiency and energy savings, CAN bus control, easy installation and maintenance. Widely applicable for self-propelled aerial work platforms.
Key Technical Specifications:
Permanent Magnet Synchronous Motor: 24-48 VDC, 1.5-5 kW, IP67 protection, S2 duty ≥ 15 min.
Hydraulic Pump Displacement Range: 0.8 cc to 5.0 cc.
Rated Working Pressure: 21 MPa; Maximum Pressure: 25 MPa.
Rated Speed: 3000 rpm; Speed Range: 600 rpm to 4500 rpm.
Operating Temperature Range: -40℃ to 120℃.
Oil Tank Volume Range: 4 L to 28 L.
