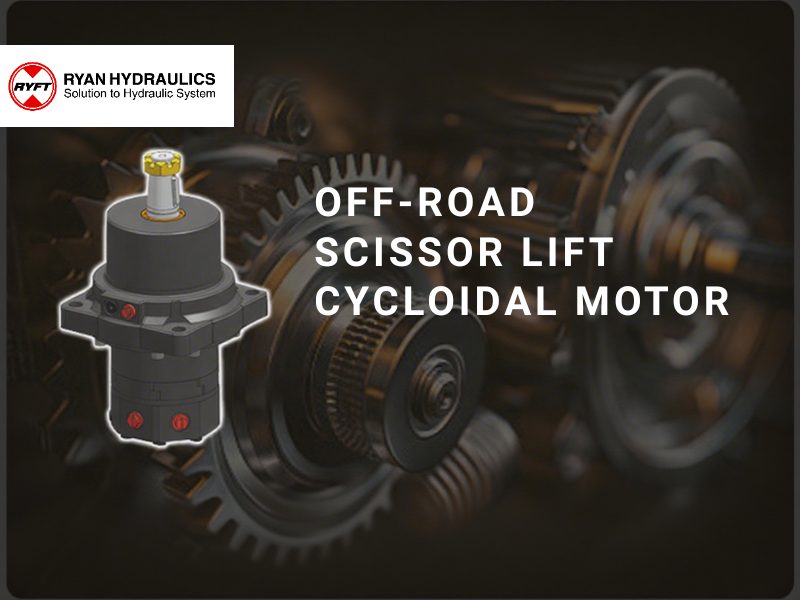

RYAN Hydraulics proudly introduces an integrated hydraulic gerotor motor specifically designed for demanding applications such as off-road scissor lifts. This product innovatively combines a high-performance gerotor motor with a reliable hydraulic brake into a compact unit, simplifying installation and optimizing space utilization. While engineered for off-road scissor lifts, this integrated motor is also well-suited for medium-sized wheel drives, screw conveyors, mixers, slew drives, winch drives, and mining equipment.

I. Core Design Features
① Integrated Motor and Brake: Compact structure enhances system integration.
② Steel-Faced Seals: Effectively prevent seal extrusion or melting under high pressure or high temperature conditions, ensuring sealing reliability.
③ Heavy-Duty Drive Shaft: Reinforced design provides outstanding durability.
④ Precision Oil Distribution: Optimized internal oil flow for high volumetric efficiency.
⑤ Rear Casing Pressure Relief Design: Reduces pressure at the shaft seal via an external leakage port, helping to extend shaft seal service life.

II. Key Technical Parameters
① Motor Displacement: 540 cc/rev
② Motor Pressure: Continuous Max. 13.8 MPa; Intermittent Max. 17.2 MPa
③ Brake Rated Braking Torque: 1582 N·m
④ Brake Release Port Maximum Pressure: 20.7 MPa
⑤ Brake Release Oil Volume Required: 13 - 16 cm³
⑥ Weight: Approx. 31.5 kg
